Clinical Potential of Spirulina as a Source of Phycocyanobilin

author:Mark F. McCarty

NutriGuard Research, Encinitas, California



ABSTRACT

Recent research reveals that free bilirubin functions physiologically as a potent inhibitor of NADPH oxidase activity. The chromophore phycocyanobilin (PCB), found in blue-green algae and cyanobacteria such as Spirulina, also has been found to be a potent inhibitor of this enzyme complex, likely because in mammalian cells it is rapidly reduced to phycocyanorubin, a close homolog of bilirubin. In light of the protean roles of NADPH oxidase activation in pathology, it thus appears likely that PCB supplementation may have versatile potential in prevention and therapy particularly in light of rodent studies demonstrating that orally administered Spirulina or phycocyanin (the Spirulina holoprotein that contains PCB) can exert a wide range of antiinflammatory effects. Until PCB enriched Spirulina extracts or synthetically produced PCB are commercially available, the most feasible and least expensive way to administer PCB is by ingestion of whole Spirulina. A heaping tablespoon (about 15 g) of Spirulina can be expected to provide about 100 mg of PCB. By extrapolating from rodent studies, it can be concluded that an intake of 2 heaping tablespoons daily would be likely to have important antioxidant activity in human sassuming that humans and rodents digest and absorb Spirulina bound PCB in a comparable manner. An intake of this magnitude can be clinically feasible if Spirulina is incorporated into “smoothies” featuring such ingredients as soy milk, fruit juices, and whole fruits. Such a regimen should be evaluated in clinical syndromes characterized and in part mediated by NADPH oxidase overactivity in affected tissues.

KEY WORDS:  antioxidant  bilirubin  biliverdin  heme oxygenase  inflammation  NADPH oxidase  phycocyanin  phycocyanobilin  Spirulina  zeaxanthin



NADPH OXIDASE AS A MEDIATOR OF PATHOLOGY

IN  A  HIGH  PROPORTION  of non-infectious pathologies, NADPH oxidase becomes activated in the affected tis-sues, and the resulting generation of oxidants either mediates or exacerbates the pathology. Thus, as cited earlier,1 overactivity of this enzyme complex appears to play a role in a host of vascular disorders, including atherogenesis, hypertension, left ventricular hypertrophy, aneurysms, and ischemia reperfusion injury; the insulin resistance associated with obesity; the major complications of diabetes; neurodegenerative disorders such as Alzheimer’s and Parkinson’s diseases; various autoimmune conditions, including rheumatoid arthritis and scleroderma; allergy and asthma; hepatic fibrosis; ultraviolet-mediated skin damage; and the cartilage loss associated with osteoarthritis. Oxidant stress generated by NADPH oxidase also sometimes contributes to cancer initiation, boosts growth factor activity in some cancers, and is a mediator of the angiogenic process. Thus, it is reasonable to suspect that tolerable clinical strategies for down-regulating NADPH oxidase activity may have a remarkably versatile potential in both preventive and therapeutic medicine. Indeed, the surprising range of benefits as-sociated with statin and angiotensin converting enzyme in-hibitor therapies likely reflects, in part, their ability to suppress NADPH oxidase activation in certain tissues.2,3



Fortunately, Nature has equipped us with feedback mechanisms that help to moderate the generation of oxidant stress. In particular, recent research has established that free bilirubin, in the low nanomolar concentrations that prevail intracellularly, functions physiologically as a potent and highly specific inhibitor of NADPH oxidase.4–6 Intracellular oxidant stress induces expression of heme oxygenase-1, which in turn generates bilirubin from heme via biliverdin7,8; this mechanism provides feedback control of the oxidant stress mediated by NADPH oxidase. Bilirubin’s suppressive im-pact on NADPH oxidase activity likely explains the growing epidemiological literature that associates increased serum bilirubin, or high-expression polymorphisms of heme

oxygenase-1, with diminished risk for vascular disorders, certain cancers, and various other diseases.1,9–12

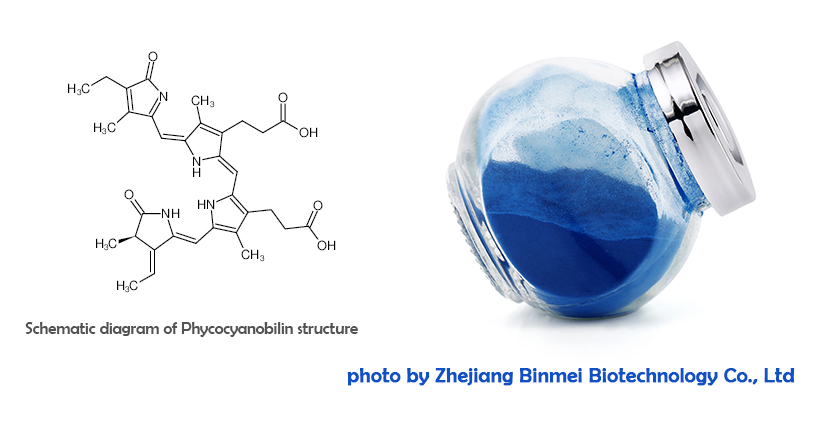

PHYCOCYANOBILIN (PCB)—A PHYTONUTRIENT INHIBITOR OF NADPH OXIDASE



Potentially, bilirubin, or preferably its more soluble precursor biliverdin, could be used as orally administered antioxidants for prevention and control of a wide range of disorders. However, there are no rich natural sources of these compounds, which moreover are difficult and expensive to synthesize. It is therefore quite fortunate that many algae and cyanobacteria are rich in the compound PCB, a chromophore that, as a component of the holoprotein phycocyanin, aids the harvesting of light energy.13 PCB is a biliverdin derivative that, in mammalian cells, is converted by the ubiquitously expressed enzyme biliverdin reductase to phycocyanorubin, a compound nearly identical in structure to bilirubin.14 Recent studies by T. Inoguchi (personal communication) show that addition of either PCB or its homolog biliverdin to human cell cultures leads to potent inhibition of NADPH oxidase; this effect is dose dependent in the low micromolar range, and near maximal at 20 M. The fact that orally administered phycocyanin or Spirulina exerts potent and versatile anti-inflammatory effects in rodents15–24 strongly suggests that ingested PCB can be sufficiently well absorbed to provide important systemic antioxidant activity. PCB’s homolog biliverdin is likewise effective when administered orally.25–27 Thus, PCB supplements, once available, may have considerable potential for health protection.



However, until PCB-enriched Spirulina extracts or PCB derived from bioengineered organisms28 or chemical syn-thesis are commercially available, the most practical source of PCB for supplemental use is whole Spirulina. Phycocyanin constitutes about 14% of the total dry weight of Spirulina; PCB represents about 4.7% of the mass of phycocyanin.29 It follows that about 0.66% of the dry mass of Spirulina is PCB. In other words, 15 g of Spirulina—ap-proximately a heaping tablespoon contains about 100 mg of PCB. The fraction of this that is absorbed in a form capable of inhibiting NADPH oxidase is unknown.



SPIRULINA AS PRACTICAL CLINICAL SOURCE OF PCB



If we make the not unreasonable assumption that absorption and metabolism of Spirulina-bound PCB are similar in rodents and humans, then clinically useful dose regimens of Spirulina can be estimated by extrapolating from regimens that demonstrate antioxidant efficacy in rodents. Such dose extrapolation can be done straightforwardly on a mg/kg basis. However, in clinical practice, dose is often adjusted by relative body surface area, which corresponds to the 2/3 power of the ratio of body weights. This latter standard evidently yields a much lower correction factor. A commonly employed compromise between these two standards is to adjust dose by the 3/4 power of the ratio of body weights; this has been found to offer a “best fit” when ex-trapolating various quantifiable metabolic parameters between mammalian species.30–32 The 3/4 power standard yields a correction factor of about 80 if comparing a 200 g rat with a 70 kg human, or a factor of 450 if comparing a 20 g mouse with a 70 kg human. (In other words, if a rat receives x mg of an agent, the corresponding human dose would be 80x mg.)



In an extensive series of investigations, Romay and co-workers have reported that oral phycocyanin administered orally to mice and rats exerts a number of dose-dependent anti-inflammatory effects in a dose range of 50–300 mg/kg/day.15–18 This amounts to a PCB intake of 2.35–14.1 mg/kg. If extrapolated on a mg/kg basis, this corresponds to a daily intake of 165–990 mg in a 70 kg human. Extrapolation by the 3/4 power standard gives human daily intakes of 21.2–127 mg (using mice) and 37.6–226 mg (using rats).



Recent studies in which whole Spirulina has been administered orally to rodents have also shown anti-inflammatory effects, in doses ranging from 150 to 1,000 mg/kg/day.19–24 This amounts to intakes of 1–6.6 mg/kg/day PCB. Extrapolating on the basis of relative weight, this cor-responds to an intake of 70–462 mg PCB in a 70 kg human. Extrapolating on the basis of the 3/4 power standard, it cor-responds to an intake of 9–59 mg (mouse studies) or 16–106 mg (rat studies). The syndromes in which Spirulina demonstrated protective efficacy included adjuvant arthritis, MPTP induced parkinsonism, doxorubicin-induced car-diomyopathy, and nephropathy mediated by cisplatin and cyclosporine; it is unlikely to be coincidental that activation of NADPH oxidase has been shown to be a key mediator of each of these syndromes.33–44



As noted, a heaping tablespoon of Spirulina contains approximately 100 mg of PCB. Thus, a regimen of 2 heaping tablespoons per day arguably the highest intake that would be feasible on a long-term basis with well-motivated patients would provide about 200 mg of PCB daily. This in-take is thus within—and in some instances a bit beyond  the extrapolated dose ranges noted above. It should follow that assuming that humans digest and metabolize Spirulina bound PCB much like rodents do—a daily intake of 2 heaping tablespoons of Spirulina daily should have clinically useful antioxidant activity in humans. Thus, it would be reasonable to test such a regimen in the prevention or treatment of the wide range of clinical disorders in which overactivity of NADPH oxidase plays a pathogenic role. Assessing impact on clinical hypertension might be a good place to start, since an effective dose regimen could be expected to have a rapid and quantifiable impact.45–51 In this regard, it is pertinent to note that, in a cohort of 50 middle-aged Czech subjects with Gilbert’s syndrome (average age 50 years), only one was found to be hypertensive.9 Intriguingly, Remirez et al.20 stated that “a number of published reports suggest beneficial effects of this microalgae in hypertension . . .”—without, however, citing these reports.

Ultimately, the availability of PCB supplements—extracted from Spirulina or synthesized—should enable a broader assessment of the dose dependency of PCB’s clinical benefits. Such supplements will improve the convenience of PCB ingestion, and make it possible to achieve PCB intakes greater than those feasible with whole Spirulina. Nonetheless, until PCB can be mass-produced inexpensively via chemical synthesis or bioengineered bacteria, ingestion of whole Spirulina will be the least expensive way to benefit from this phytonutrient. It should be noted that the relative absorption and bioefficacy of free PCB and Spirulina-bound PCB have not yet been assessed, in either rodents or humans; evidently, this issue requires attention.



Among health food devotees, Spirulina is frequently ingested in “smoothies”; a smoothie made by blending a cup of vanilla soy milk, one banana, and a heaping tablespoon of Spirulina is reasonably palatable (albeit it looks like frothy green slime!), and provides in addition soy isoflavones and an ample amount of potassium (about 1 g). Various fruit juices and whole fruits can also be used to produce Spirulina smoothies; for example, cinnamon-spiced apple juice works very well. The flavor of Spirulina, although unappealing to most people, is relatively mild, and thus susceptible to masking by a variety of flavors. type 2 diabetics62; it is not clear what mediates this effect (soluble fiber?), or whether this effect (if real) might be of a greater and more clinically significant magnitude with the higher doses of Spirulina recommended here.



It must be borne in mind, of course, that complete inhibition of NADPH oxidase would be inappropriate and dangerous, particularly in light of the key role which NADPH oxidase plays in phagocyte bactericidal mechanisms and in T cell regulation.63,64 Fortunately, people with Gilbert’s syndrome, characterized by chronic moderate (two- to three-fold) up-regulation of free bilirubin levels, have not been noted to be especially prone to infection—even though they are at reduced risk for vascular disorders. This suggests that moderate, partial inhibition of NAPDH oxidase can be associated with worthwhile health benefits without entailing an important compromise of immune defenses—perhaps in part because phagocytes have recourse to ancillary bactericidal mechanisms.65 In any case, once PCB supplements are available, their use could be temporarily discontinued when persistent or life-threatening infections develop. The impact of whole Spirulina on infection may be complex, since, as noted, the cell wall polysaccharides of Spirulina can act as a stimulant to macrophages.





SAFETY CONSIDERATIONS AND ANCILLARY BENEFITS



With respect to safety considerations, it should be noted that Spirulina once was a staple of the Aztec diet, and rodents show no ill effects when fed diets in which Spirulina constitutes 30% of total weight.52–54 Fifteen grams of Spirulina provides about 70 mg of total carotenoids—carotenes (54%) and xanthophylls (46%); this may make an ancillary contribution to the physiological antioxidant activity of this food. Of particular note is the zeaxanthin content—12 mg/15 g; if this has reasonable bioavailability, it could have a worthwhile impact on protective macular pigment.55,56 The cell wall polysaccharide content of Spirulina may be a mediator of the immunomodulatory effects reported with Spirulina ingestion; Spirulina polysaccharides can activate anti-gen-presenting cells and monocytes via Toll-like receptor 2.57–59 These polysaccharides (“spirulinan”) are also re-ported to suppress the proliferation of vascular smooth muscle cells in vitro60; whether this effect is germane to orally ingested Spirulina is not clear. Sixty percent of the dry mass of Spirulina is protein; 2.3% of this protein is methionine, a fraction comparable to that in rice. Although the lipid content of spirulina is modest, this alga is unusually rich in gamma-linolenic acid about 1.3% of dry weight; thus, an intake of 30 g of Spirulina daily would provide about 390 mg of gamma-linolenic acid, a dose that is, however, considerably lower than that shown to exert clinical anti-inflammatory activity in rheumatoid arthritis.61 In one controlled but not double  blind study, 2 g of Spirulina daily was reported to improve glycemic control and serum lipids in

NOTE ADDED IN PROOF



Since the submission of this review, Riss et al.66 have re-ported that orally administered phycocyanin or whole Spirulina “powerfully prevents the development of atherosclerosis” in cholesterol-fed hamsters. Although this appears to be the first published evidence that Spirulina has vascular-protective potential, it is consistent with the central role that NADPH oxidase plays in atherogenesis.



REFERENCES



1.McCarty MF: “Iatrogenic Gilbert syndrome”—a strategy for reducing vascular and cancer risk by increasing plasma unconjugated bilirubin. Med Hypotheses2007 Sep 5; [Epub ahead of print].

2.Nakagami H, Jensen KS, Liao JK: A novel pleiotropic effect of statins: prevention of cardiac hypertrophy by cholesterol-independent mechanisms. Ann Med 2003;35:398–403.

3.Touyz RM, Tabet F, Schiffrin EL: Redox-dependent signalling by angiotensin II and vascular remodelling in hypertension. ClinExp Pharmacol Physiol 2003;30:860–866.

4.Lanone S, Bloc S, Foresti R, et al.: Bilirubin decreases nos2 expression via inhibition of NAD(P)H oxidase: implications for protection against endotoxic shock in rats. FASEB J 2005;19: 1890–1892.

5.Matsumoto H, Ishikawa K, Itabe H, Maruyama Y: Carbon monox-ide and bilirubin from heme oxygenase-1 suppresses reactive oxy-gen species generation and plasminogen activator inhibitor-1 in-duction. Mol Cell Biochem2006;291:21–28.

6.Jiang F, Roberts SJ, Datla S, Dusting GJ: NO modulates NADPH oxidase function via heme oxygenase-1 in human endothelial cells. Hypertension2006;48:950–957.

7.Cho HY, Reddy SP, Kleeberger SR: Nrf2 defends the lung from oxidative stress. Antioxid Redox Signal2006;8:76–87.

8.Bach FH: Heme oxygenase-1 as a protective gene. Wien KlinWochenschr 2002;114(Suppl 4):1–3.

9.Vitek L, Jirsa M, Brodanova M, et al.: Gilbert syndrome and ischemic heart disease: a protective effect of elevated bilirubin levels. Atherosclerosis 2002;160:449–456.

10.Vitek L, Novotny L, Sperl M, Holaj R, Spacil J: The inverse association of elevated serum bilirubin levels with subclinical carotid atherosclerosis. Cerebrovasc Dis2006;21:408–414.

11.Zucker SD, Horn PS, Sherman KE: Serum bilirubin levels in the U.S. population: gender effect and inverse correlation with colorectal cancer. Hepatology 2004;40:827–835.

12.Exner M, Minar E, Wagner O, Schillinger M: The role of heme oxygenase-1 promoter polymorphisms in human disease. FreeRadic Biol Med 2004;37:1097–1104.

13.Brown SB, Houghton JD, Vernon DI: Biosynthesis of phycobilins. Formation of the chromophore of phytochrome, phycocyanin and phycoerythrin. J Photochem Photobiol B1990;5:3–23.

14.Terry MJ, Maines MD, Lagarias JC: Inactivation of phytochrome-and phycobiliprotein-chromophore precursors by rat liver biliverdin reductase. J Biol Chem1993;268:26099–26106.

15.Romay C, Armesto J, Remirez D, Gonzalez R, Ledon N, Garcia I: Antioxidant and anti-inflammatory properties of C-phycocyanin from blue-green algae. Inflamm Res1998;47:36–41.

16.Romay C, Delgado R, Remirez D, Gonzalez R, Rojas A: Effects of phycocyanin extract on tumor necrosis factor-alpha and nitrite levels in serum of mice treated with endotoxin. Arzneimit-telforschung 2001;51:733–736.

17.Romay C, Gonzalez R, Ledon N, Remirez D, Rimbau V: C-phycocyanin: a biliprotein with antioxidant, anti-inflammatory and neuroprotective effects. Curr Protein Pept Sci 2003;4:207–216.

18.Rimbau V, Camins A, Romay C, Gonzalez R, Pallas M: Protective effects of C-phycocyanin against kainic acid-induced neuronal damage in rat hippocampus. Neurosci Lett1999;276: 75–78.

19.Chamorro G, Perez-Albiter M, Serrano-Garcia N, Mares-Samano JJ, Rojas P: Spirulina maximapretreatment partially protects against 1-methyl-4-phenyl-1,2,3,6-tetrahydropyridine neurotoxic-ity. Nutr Neurosci 2006;9:207–212.

20.Remirez D, Gonzalez R, Merino N, Rodriguez S, Ancheta O: Inhibitory effects of Spirulinain zymosan-induced arthritis in mice. Mediators Inflamm 2002;11:75–79.

21.Rasool M, Sabina EP, Lavanya B: Anti-inflammatory effect of Spirulina fusiformis on adjuvant-induced arthritis in mice.Biol Pharm Bull 2006;29:2483–2487.

22.Khan M, Shobha JC, Mohan IK, et al.: Protective effect of Spir-ulina against doxorubicin-induced cardiotoxicity. Phytother Res 2005;19:1030–1037.

23.Mohan IK, Khan M, Shobha JC, et al.: Protection against cisplatin-induced nephrotoxicity by Spirulinain rats. Cancer Chemother Pharmacol 2006;58:802–808.

24.Khan M, Shobha JC, Mohan IK, Rao Naidu MU, Prayag A, Kutala VK: Spirulinaattenuates cyclosporine-induced nephrotoxic-ity in rats. J Appl Toxicol 2006;26:444–451.

25.Nakagami T, Toyomura K, Kinoshita T, Morisawa S: A beneficial role of bile pigments as an endogenous tissue protector: anti-complement effects of biliverdin and conjugated bilirubin. Biochim Biophys Acta 1993;1158:189–193.

26.Nakao A, Otterbein LE, Overhaus M, et al.: Biliverdin protects the functional integrity of a transplanted syngeneic small bowel. Gastroenterology 2004;127:595–606.

27.Yamashita K, McDaid J, Ollinger R, et al.: Biliverdin, a natural product of heme catabolism, induces tolerance to cardiac allografts. FASEB J2004;18:765–767.

28.Mukougawa K, Kanamoto H, Kobayashi T, Yokota A, Kohchi T: Metabolic engineering to produce phytochromes with phytochro-mobilin, phycocyanobilin, or phycoerythrobilin chromophore in Escherichia coli. FEBS Lett 2006;580:1333–1338.

29.Padyana AK, Bhat VB, Madyastha KM, Rajashankar KR, Ramakumar S: Crystal structure of a light-harvesting protein C-phycocyanin from Spirulina platensis. Biochem Biophys Res Com-mun 2001;282:893–898.

30.Travis CC: Interspecies extrapolation in risk analysis. Ann Ist Super Sanita 1991;27:581–593.

31.Darveau CA, Suarez RK, Andrews RD, Hochachka PW: Allo-metric cascade as a unifying principle of body mass effects on metabolism. Nature2002;417:166–170.

32.Lindstedt L, Schaeffer PJ: Use of allometry in predicting anatomical and physiological parameters of mammals. Lab Anim2002;36:1–19.

33.’t Hart BA, Bakker NP, Labadie RP, Simons JM: The newly de-veloped neutrophil oxidative burst antagonist apocynin inhibits joint-swelling in rat collagen arthritis. Agents Actions Suppl1991;32:179–184.

34.van Lent PL, Nabbe KC, Blom AB, et al.: NADPH-oxidase-driven oxygen radical production determines chondrocyte death and partly regulates metalloproteinase-mediated cartilage matrix degradation during interferon-gamma-stimulated immune com-plex arthritis. Arthritis Res Ther2005;7:R885–R895.

35.Miesel R, Sanocka D, Kurpisz M, Kroger H: Antiinflammatory effects of NADPH oxidase inhibitors. Inflammation1995;19: 347–362.

36.Hougee S, Hartog A, Sanders A, et al.: Oral administration of the NADPH-oxidase inhibitor apocynin partially restores diminished cartilage proteoglycan synthesis and reduces inflammation in mice. Eur J Pharmacol2006;531:264–269.

37.Gao HM, Liu B, Zhang W, Hong JS: Critical role of microglial NADPH oxidase-derived free radicals in the in vitro MPTP model of Parkinson’s disease. FASEB J2003;17:1954–1956.

38.Wu DC, Teismann P, Tieu K, et al.: NADPH oxidase mediates oxidative stress in the 1-methyl-4-phenyl-1,2,3,6-tetrahydropyri-dine model of Parkinson’s disease. Proc Natl Acad Sci U S A2003;100:6145–6150.

39.Deng S, Kruger A, Kleschyov AL, Kalinowski L, Daiber A, Wojnowski L: Gp91phox-containing NAD(P)H oxidase increases superoxide formation by doxorubicin and NADPH. Free RadicBiol Med 2007;42:466–473.

40.Wojnowski L, Kulle B, Schirmer M, et al.: NAD(P)H oxidase and multidrug resistance protein genetic polymorphisms are associated with doxorubicin-induced cardiotoxicity. Circulation2005; 112:3754–3762.

41.Kawai Y, Nakao T, Kunimura N, Kohda Y, Gemba M: Relationship of intracellular calcium and oxygen radicals to cisplatin-related renal cell injury. J Pharmacol Sci2006;100:65–72.

42.Zhong Z, Connor HD, Yin M, Wheeler MD, Mason RP, Thurman RG: Viral delivery of superoxide dismutase gene reduces cy-closporine A-induced nephrotoxicity. Kidney Int2001;59: 1397–1404.

43.Louhelainen M, Merasto S, Finckenberg P, Lapatto R, Cheng ZJ, Mervaala EM: Lipoic acid supplementation prevents cy-closporine induced hypertension and nephrotoxicity in spontaneously hypertensive rats. J Hypertens2006;24:947–956.

44.Vetter M, Chen ZJ, Chang GD, Che D, Liu S, Chang CH: Cyclosporin A disrupts bradykinin signaling through superoxide. Hypertension 2003;41:1136–1142.

45.Park YM, Park MY, Suh YL, Park JB: NAD(P)H oxidase inhibitor prevents blood pressure elevation and cardiovascular hypertrophy in aldosterone infused rats. Biochem Biophys Res Com-mun 2004;313:812–817.

46.Ghosh M, Wang HD, McNeill JR: Role of oxidative stress and nitric oxide in regulation of spontaneous tone in aorta of DOCA-salt hypertensive rats. Br J Pharmacol2004;141:562–573.

47.Virdis A, Neves MF, Amiri F, Touyz RM, Schiffrin EL: Role of NAD(P)H oxidase on vascular alterations in angiotensin II-in-fused mice. J Hypertens2004;22:535–542.

48.Zimmerman MC, Dunlay RP, Lazartigues E, et al.: Requirement for Rac1-dependent NADPH oxidase in the cardiovascular and dipsogenic actions of angiotensin II in the brain. Circ Res2004;95:532–539.

49.Zhang Y, Chan MM, Andrews MC, et al.: Apocynin but not al-lopurinol prevents and reverses adrenocorticotropic hormone-in-duced hypertension in the rat. Am J Hypertens2005;18:910–916.

50.Hu L, Zhang Y, Lim PS, et al.: Apocynin but not L-arginine prevents and reverses dexamethasone-induced hypertension in the rat. Am J Hypertens2006;19:413–418.

51.Lodi F, Cogolludo A, Duarte J, et al.: Increased NADPH oxidase activity mediates spontaneous aortic tone in genetically hypertensive rats. Eur J Pharmacol2006;544:97–103.

52.Salazar M, Chamorro GA, Salazar S, Steele CE: Effect of Spirulina maxima consumption on reproduction and peri and post-natal development in rats. Food Chem Toxicol1996;34:353–359.

53.Chamorro G, Salazar M, Favila L, Bourges H: [Pharmacology and toxicology of Spirulinaalga]. Rev Invest Clin 1996;48: 389–399.

54.Salazar M, Martinez E, Madrigal E, Ruiz LE, Chamorro GA: Sub-chronic toxicity study in mice fed Spirulina maxima. J Ethnophar-macol 1998;62:235–241.

55.Ahmed SS, Lott MN, Marcus DM: The macular xanthophylls. Surv Ophthalmol 2005;50:183–193.

56.O’Connell E, Neelam K, Nolan J, Au Eong KG, Beatty S: Mac-ular carotenoids and age-related maculopathy. Ann Acad Med Singapore 2006;35:821–830.

57.Al Batshan HA, Al Mufarrej SI, Al Homaidan AA, Qureshi MA: Enhancement of chicken macrophage phagocytic function and ni-trite production by dietary Spirulina platensis. Immunopharma-col Immunotoxicol 2001;23:281–289.

58.Balachandran P, Pugh ND, Ma G, Pasco DS: Toll-like receptor 2-dependent activation of monocytes by Spirulina polysaccharide and its immune enhancing action in mice. Int Immunopharmacol 2006;6:1808–1814.

59.Pugh N, Ross SA, ElSohly HN, ElSohly MA, Pasco DS: Isola-tion of three high molecular weight polysaccharide preparations with potent immunostimulatory activity from Spirulina platensis, aphanizomenon flos-aquae andChlorella pyrenoidosa. Planta Med 2001;67:737–742.

60.Kaji T, Okabe M, Shimada S, et al.: Sodium spirulan as a potent inhibitor of arterial smooth muscle cell proliferation in vitro. LifeSci 2004;74:2431–2439.

61.Zurier RB, Rossetti RG, Jacobson EW, et al.: Gammalinolenic acid treatment of rheumatoid arthritis. A randomized, placebo-controlled trial. Arthritis Rheum1996;39:1808–1817.

62.Parikh P, Mani U, Iyer U: Role of Spirulinain the control of glycemia and lipidemia in type 2 diabetes mellitus. J Med Food 2001;4:193–199.

63.Roos D, van Bruggen R, Meischl C: Oxidative killing of microbes by neutrophils. Microbes Infect2003;5:1307–1315.

64.Maemura K, Zheng Q, Wada T, et al.: Reactive oxygen species are essential mediators in antigen presentation by Kupffer cells. Immunol Cell Biol 2005;83:336–343.

65.Ganz T: Oxygen-independent microbicidal mechanisms of phago-cytes. Proc Assoc Am Physicians1999;111:390–395.

66.Riss J, Decorde K, Sutra T, et al.: Phycobiliprotein C-phycocyanin from Spirulina platensisis powerfully responsible for reducing oxidative stress and NADPH oxidase expression induced by an atherogenic diet in hamsters. J Agric Food Chem 2007;55: 7962–79
